About

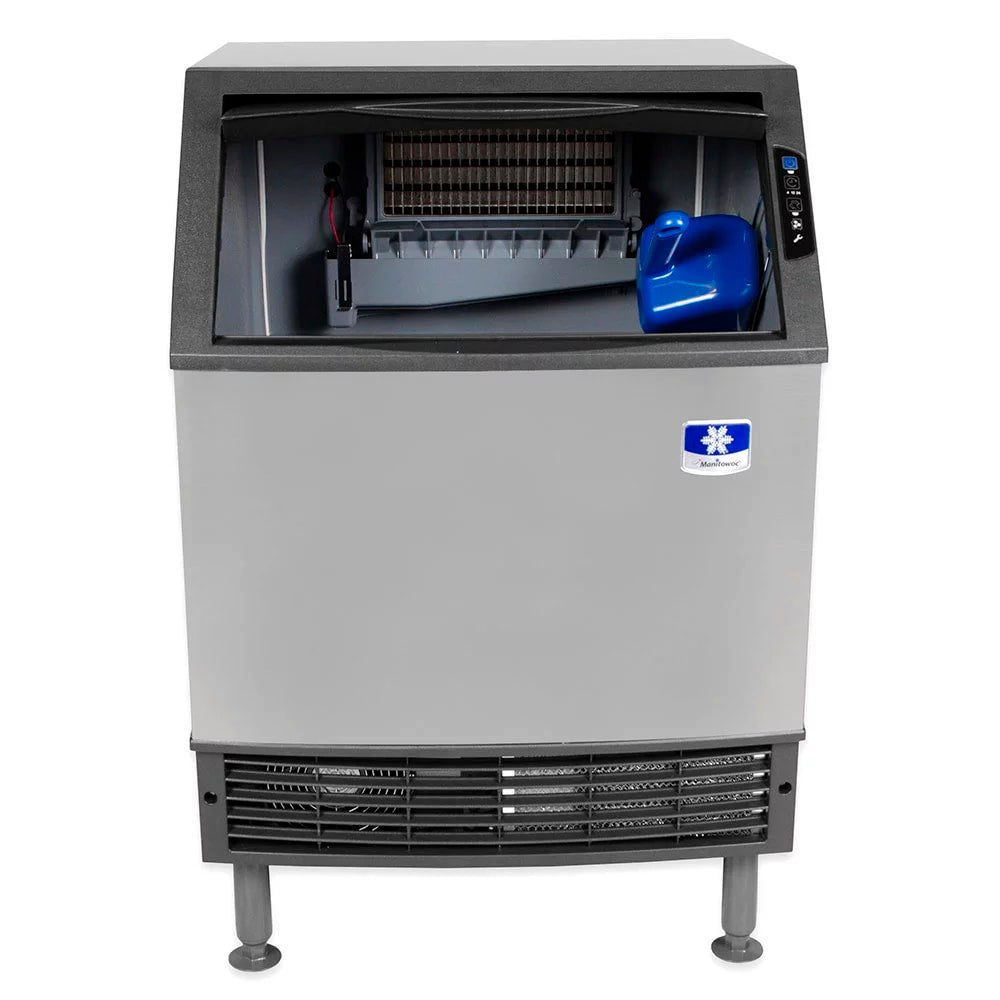

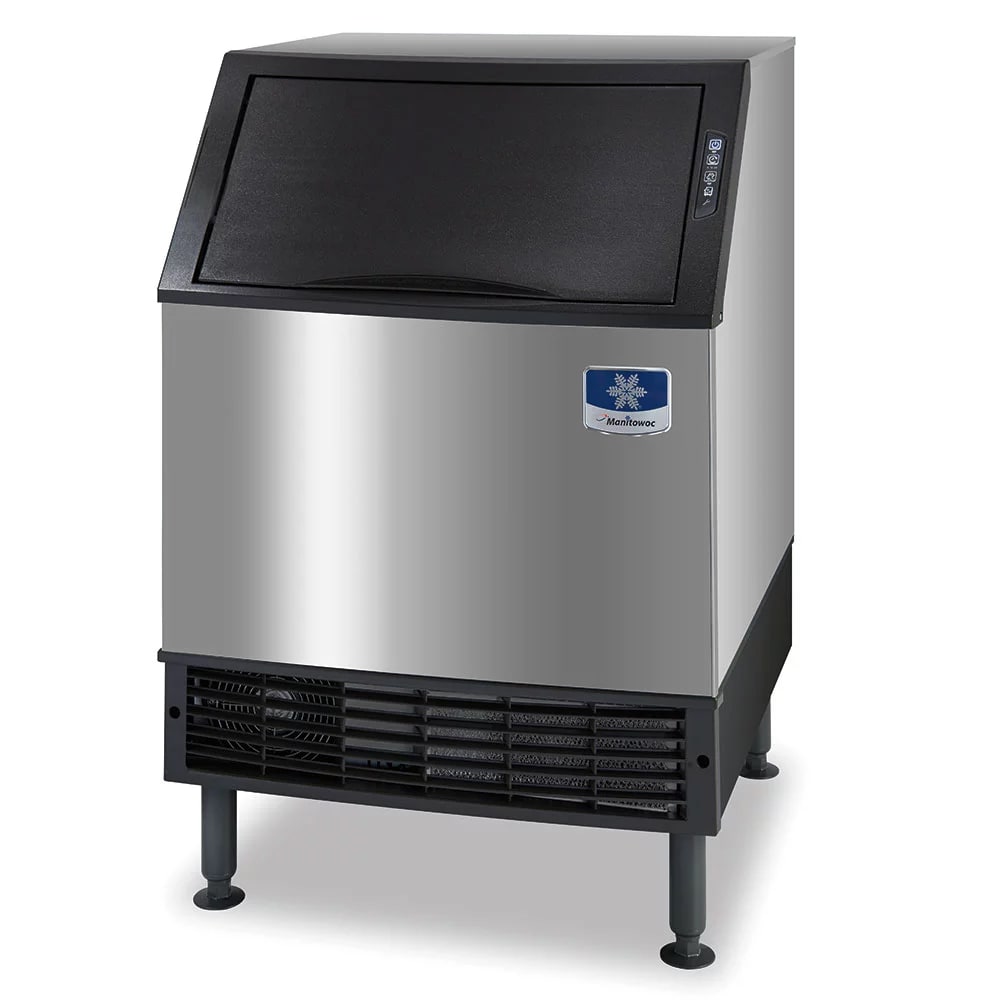

The Manitowoc UYF-0140A Neo® undercounter ice maker produces half-dice ice that measures 3⁄8 inch by 11⁄8 inch by 7⁄8 inch. In a 24-hour period, the unit makes 137 pounds of half-dice ice if the ambient temperature is 70 degrees Fahrenheit. The delay function allows operators to pause ice production during closed or slow business hours. The storage bin holds up to 90 pounds, and an ergonomic scoop is included to prevent ice from being contaminated by bare hand contact.
Installation and maintenance are simple since the air-cooled condenser is self-contained, and servicing the Manitowoc UYF-0140A Neo undercounter ice maker is easy thanks to the accessible refrigeration components. The plastic food zone has a removable damper door, water trough, and distribution tube so they can be quickly cleaned. The feedback program uses indicator lights to let operators know about full bin conditions and service needs.
Product Details
- 137-lb. maximum daily ice production
- 100-lb. AHRI-certified daily ice production

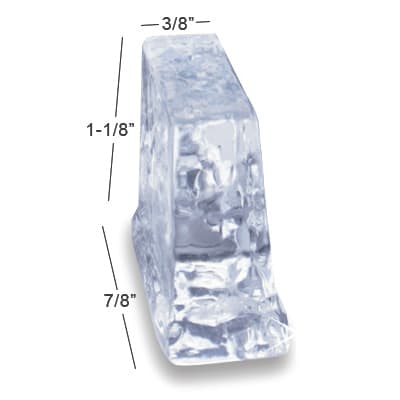

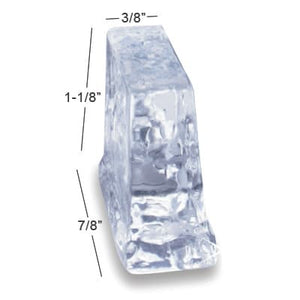

- Half-dice ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Full bin and service indicators provide convenient feedback
- Delay function pauses ice production for slow periods
- Easy installation and maintenance thanks to the air-cooled condensing unit

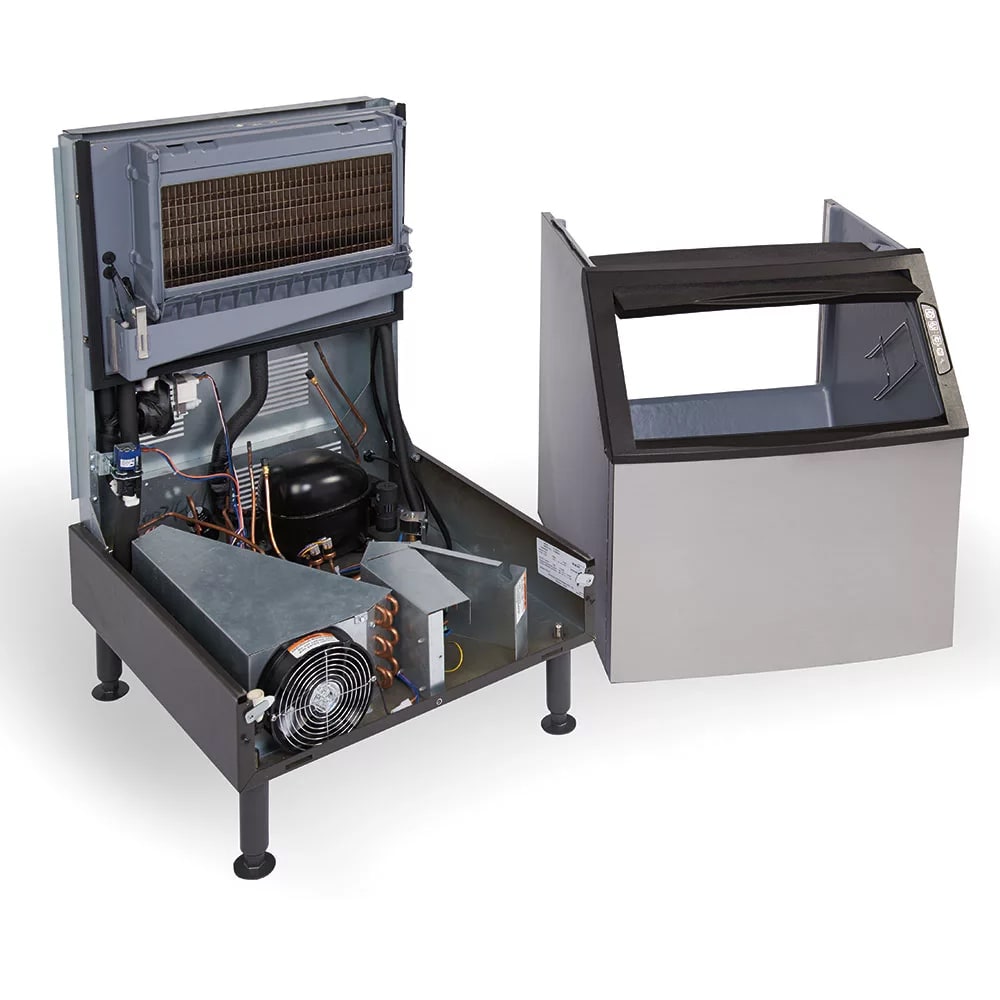

- Refrigeration components are accessible for quick service
- Smooth, sealed food zone has a removable distribution tube, damper door, and water trough for simple cleanup
- AlphaSan® antimicrobial protection on the integral components slows bacteria growth
- 90-lb. storage bin capacity
- Ergonomically designed plastic scoop is included
- 2,150 BTU of heat transfer capacity
Dimensions & Utilities
- 26 in. W x 281⁄2 in. D x 381⁄2 in. H
- 5 A, 0.42 HP, 9.2 kW
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
Manitowoc Ice UYF0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 137 |
| Also Known As | UY-0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Drain Type | Gravity |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 100 - 199 lbs |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 26 |
| Weight | 153.00 |
Lease Calculator
EconoLease Calculator
The Manitowoc UYF-0140A Neo® undercounter ice maker produces half-dice ice that measures 3⁄8 inch by 11⁄8 inch by 7⁄8 inch. In a 24-hour period, the unit makes 137 pounds of half-dice ice if the ambient temperature is 70 degrees Fahrenheit. The delay function allows operators to pause ice production during closed or slow business hours. The storage bin holds up to 90 pounds, and an ergonomic scoop is included to prevent ice from being contaminated by bare hand contact.
Installation and maintenance are simple since the air-cooled condenser is self-contained, and servicing the Manitowoc UYF-0140A Neo undercounter ice maker is easy thanks to the accessible refrigeration components. The plastic food zone has a removable damper door, water trough, and distribution tube so they can be quickly cleaned. The feedback program uses indicator lights to let operators know about full bin conditions and service needs.
Product Details
- 137-lb. maximum daily ice production
- 100-lb. AHRI-certified daily ice production
- Half-dice ice size: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Full bin and service indicators provide convenient feedback
- Delay function pauses ice production for slow periods
- Easy installation and maintenance thanks to the air-cooled condensing unit
- Refrigeration components are accessible for quick service
- Smooth, sealed food zone has a removable distribution tube, damper door, and water trough for simple cleanup
- AlphaSan® antimicrobial protection on the integral components slows bacteria growth
- 90-lb. storage bin capacity
- Ergonomically designed plastic scoop is included
- 2,150 BTU of heat transfer capacity
Dimensions & Utilities
- 26 in. W x 281⁄2 in. D x 381⁄2 in. H
- 5 A, 0.42 HP, 9.2 kW
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
Manitowoc Ice UYF0140A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 137 |
| Also Known As | UY-0140A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Drain Type | Gravity |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 100 - 199 lbs |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 26 |
| Weight | 153.00 |
