About

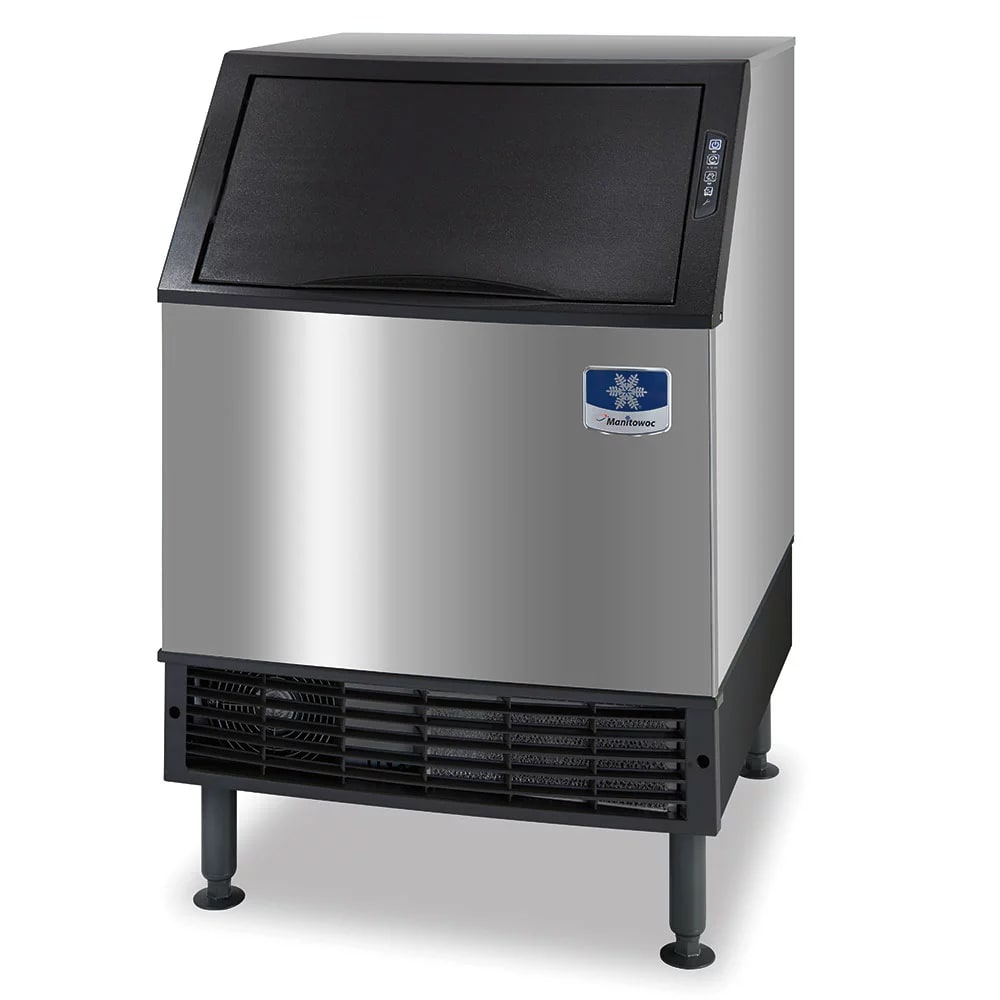

The Manitowoc UDF0240A-261Z NEO® undercounter ice maker has front buttons that indicate different modes and uses, including full bin and service indicators. With a storage capacity of 90 pounds, the ice machine can make as much as 215 pounds of ice daily. Each ice cube measures 0.875 inch by 0.875 inch by 0.875 inch and is ideal for drinks in bars and restaurants because ice production can be delayed during slow hours.

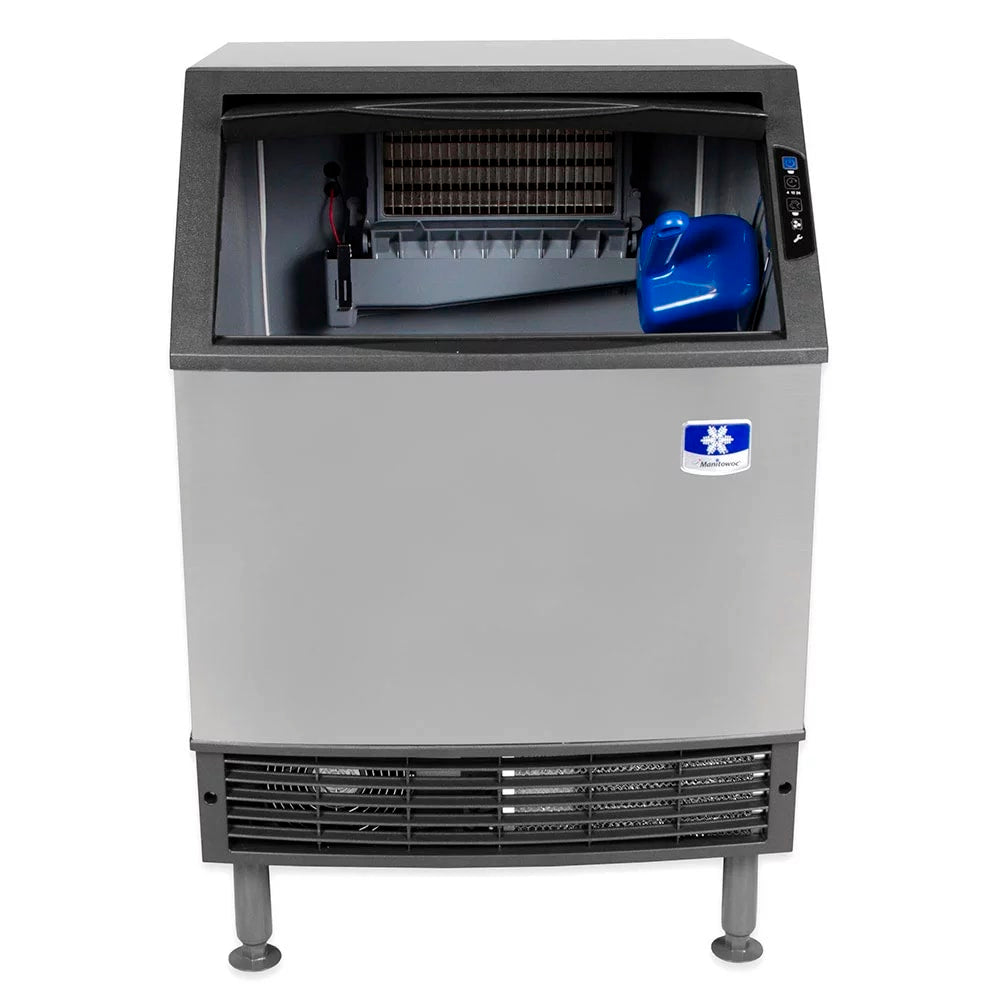

The food zone houses components that come in contact with water and ice and has removable parts. An antimicrobial agent on the parts slows bacteria, slime, and mold growth to facilitate cleaning. For installation next to a wall and other equipment, the Manitowoc UDF-0240A undercounter ice machine has vents in the front for air to flow in and out.
Product Details
- 215-lb. daily ice production capacity
- 160-lb. AHRI-certified daily ice production capacity

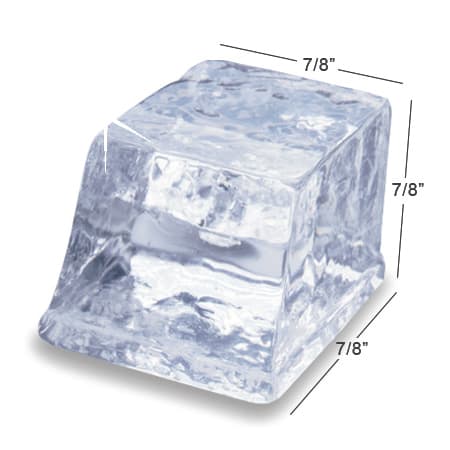

- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- 90-lb. storage capacity
- Air-cooled condenser
- Full bin and service indicators are visible on the front
- Ice production can be delayed during slow periods
- Removable food zone components facilitate cleaning
- Internal components are made with AlphaSan antimicrobial for bacteria protection
- Front-breathing design enables installation against a wall and other equipment
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 45-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 2,700 average BTU; 3,300 peak BTU
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 7 A, 7.9 kW, 1⁄3 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
Manitowoc Ice UDF0240A-261Z Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Manitowoc Ice |
24 Hr. Production (lb) | 215 |
Also Known As | UD-0240A |
Bin Capacity (lb) | 90 |
Compressor Type | Air Cooled |
Depth (in) | 28.5 |
Drain Type | Gravity |
Height (in) | 38.5 |
Hertz | 60 |
Ice Type | Full Cube |
Phase | 1 |
Product | Undercounter Ice Makers |
Product Type | Ice Makers & Bins |
Production Range (lb/day) | 200 - 299 lbs |
Series | NEO® |
Special Features | Antimicrobial |
Special Features | Digital Controls |
Special Features | Removable Air Filter |
Suggested Use | Commercial |
Voltage | 115 |
Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
Width (in) | 26 |
Weight | 157.00 |
