About

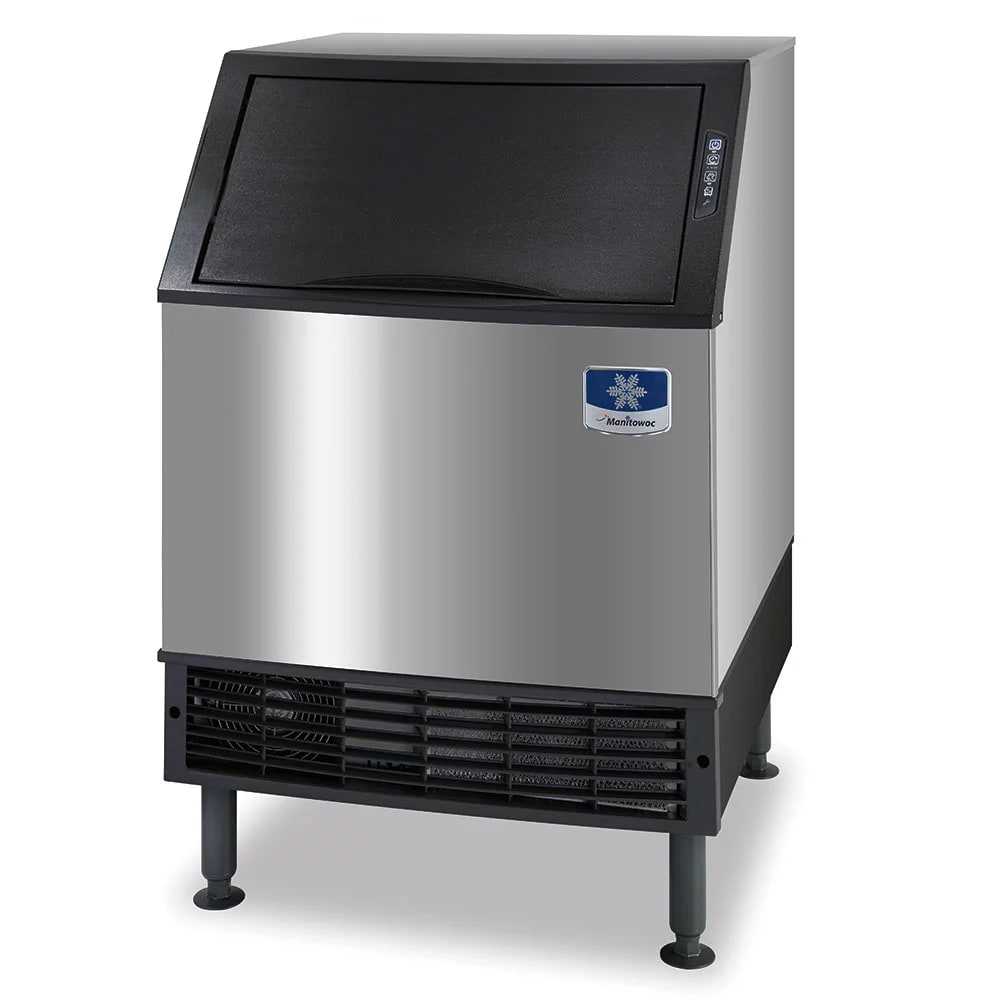

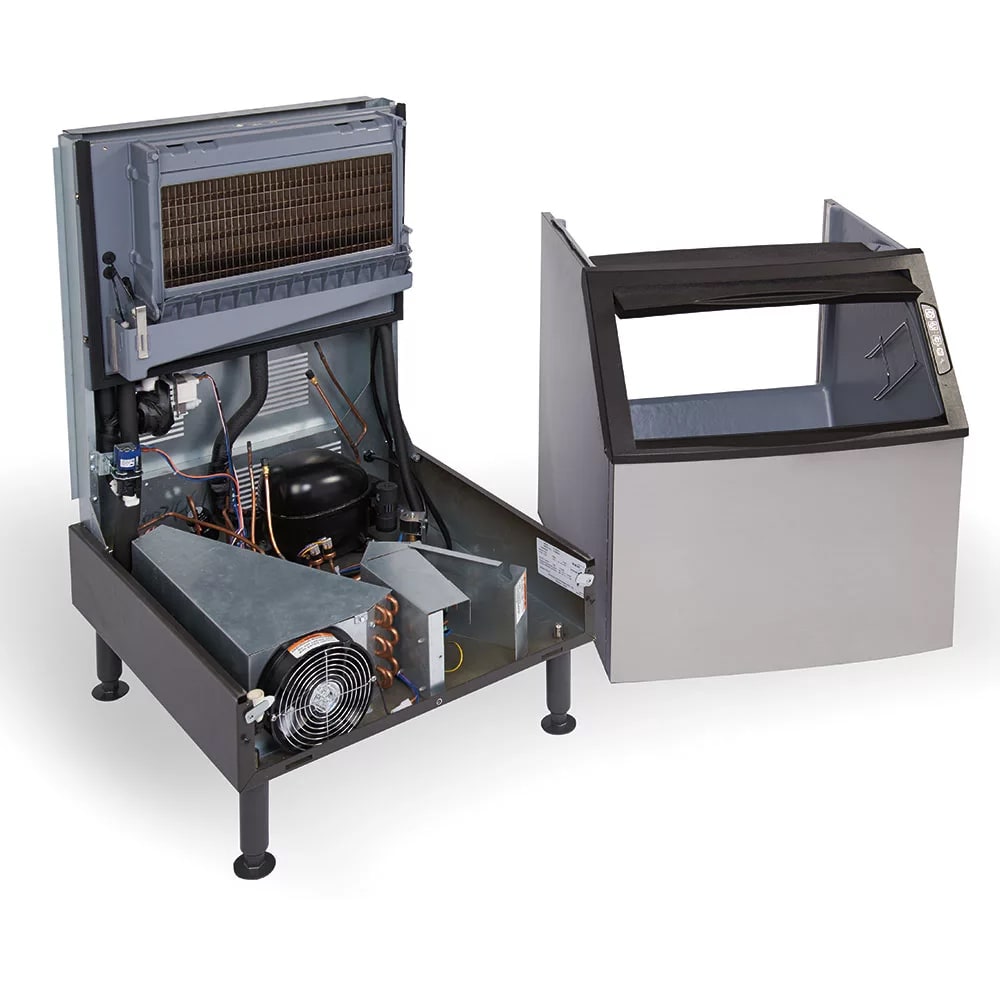

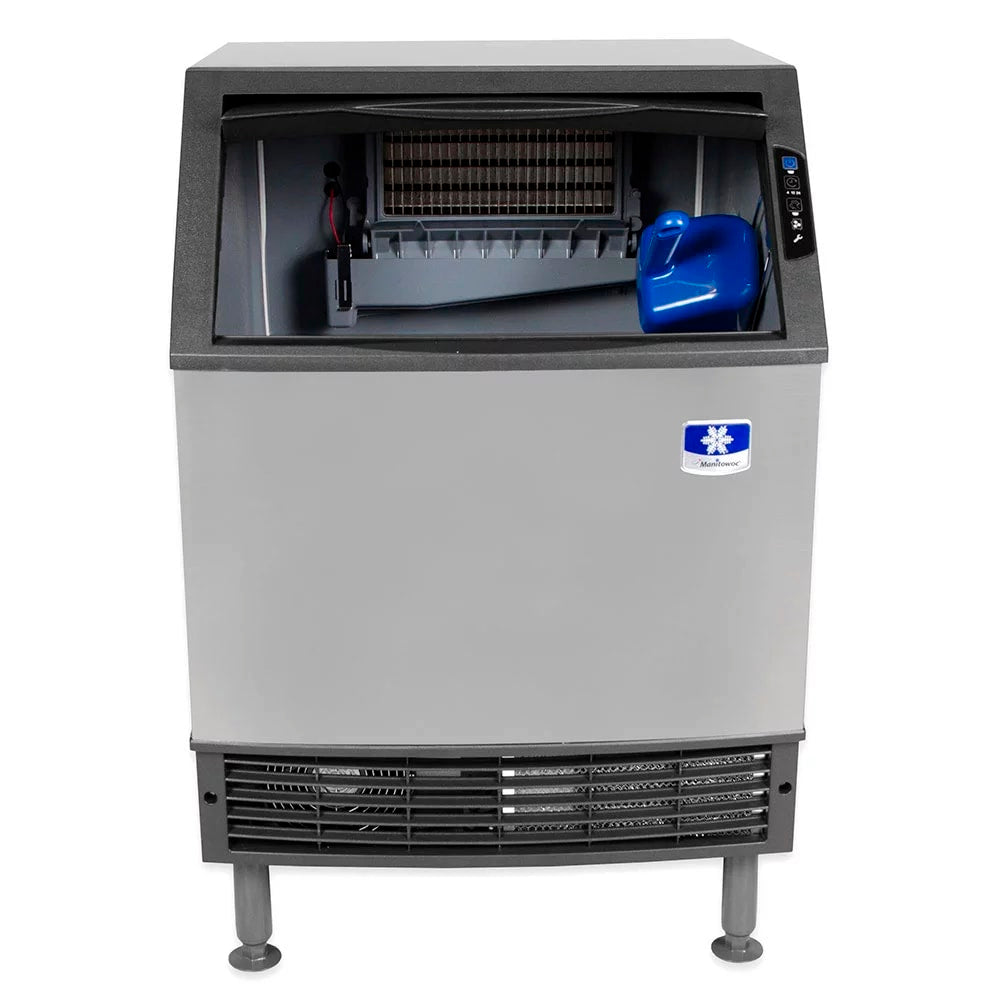

The Manitowoc Ice UDF0190A NEO® undercounter ice machine has a large, 90-pound-capacity ice bin. Per day, the machine can make 198 pounds of dice ice, and afterhours, operators can pause ice production to save energy. On the front of the unit, indicator lights tell users when the bin is full, when service is needed, and more. To reach the internal parts, operators simply slide the bin off the bottom.
For thorough cleaning, the Manitowoc Ice UDF0190A ice maker has removable components, including the water trough, damper door, and distribution tube. AlphaSan® antimicrobial agents are molded into several parts, reducing the speed of bacteria growth between cleanings. Air cooled, the unit's refrigeration system features a reusable air filter that can be removed without tools. Because this machine does not expel air from the sides, it can be placed beside the wall, counter, or other equipment.
Product Details
- Part of the NEO ice maker series
- 198-lb. maximum daily ice production
- 140-lb. AHRI-certified daily ice production
- 90-lb. ice storage capacity

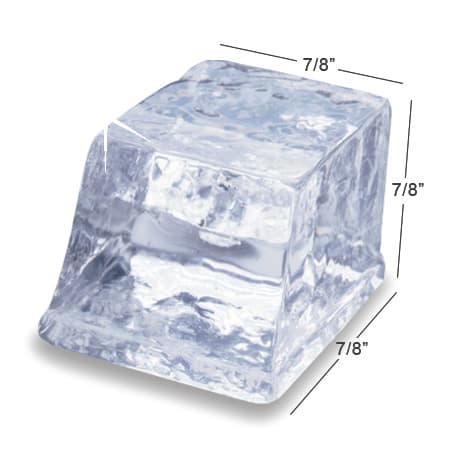

- Dice cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Indicator lights for service and full bin
- Delay button pauses production
- Water trough, distribution tube, and damper door are removable for cleaning
- Internal parts have AlphaSan agents that slow slime and bacteria growth
- Air-cooled condenser uses natural R404A hydrocarbon refrigerant
- Front-breathing design for placement against walls
- Adjustable legs with flanged gray feet
- Scoop included
- 2,150 average BTU; 2,600 peak BTU
Product Features
Ideal Operating Conditions
- Incoming water pressure: 20-80 PSI
- Water temperature: 45-90 degrees F
- Ambient air temperature: 40-110 degrees F
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 6 A, 8.4 kW, 0.42 HP
- 115 V/60 HZ/1 ph, 6-ft. cord with a NEMA 5-15P plug
Manitowoc Ice UDF0190A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 198 |
| Also Known As | UD-0190A |
| Bin Capacity (lb) | 90 |
| Compressor Type | Air Cooled |
| Depth (in) | 28.5 |
| Drain Type | Gravity |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 100 - 199 lbs |
| Series | NEO® |
| Special Features | Antimicrobial |
| Special Features | Digital Controls |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 26 |
| Weight | 153.00 |
