About
In ideal operating conditions, the Manitowoc Ice UDE0065A NEO® undercounter ice maker produces 57 pounds of full-cube ice in 24 hours, however, this amount depends on the water and air temperature. Users can operate the unit with the selector switch on its front, and to make cleanup easy, AlphaSan®, an antimicrobial agent, is integrated into key components. This slows bacteria and mold growth.
The Manitowoc Ice UDE0065A ice machine storage bin holds 31 pounds, and its liner is designed without crevices that can make cleaning more difficult. Sliding up and out of the way, the bin door provides convenient access to ice and the interior. Strong stainless steel constructs the unit’s exterior, and its compact design enables it to be used as an undercounter or standalone unit.
Product Details
- Part of the NEO ice maker series
- 57-lb. maximum daily ice production
- Makes dice ice
- Dice ice size: 7⁄8-in. x 7⁄8 in. x 7⁄8 in.
- 31-lb. storage bin saves ice for high-volume business hours
- Seamless, polyethylene bin liner eases cleaning

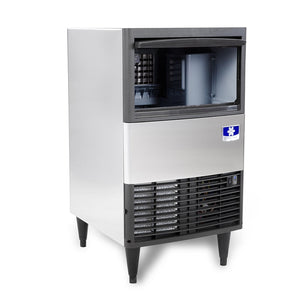

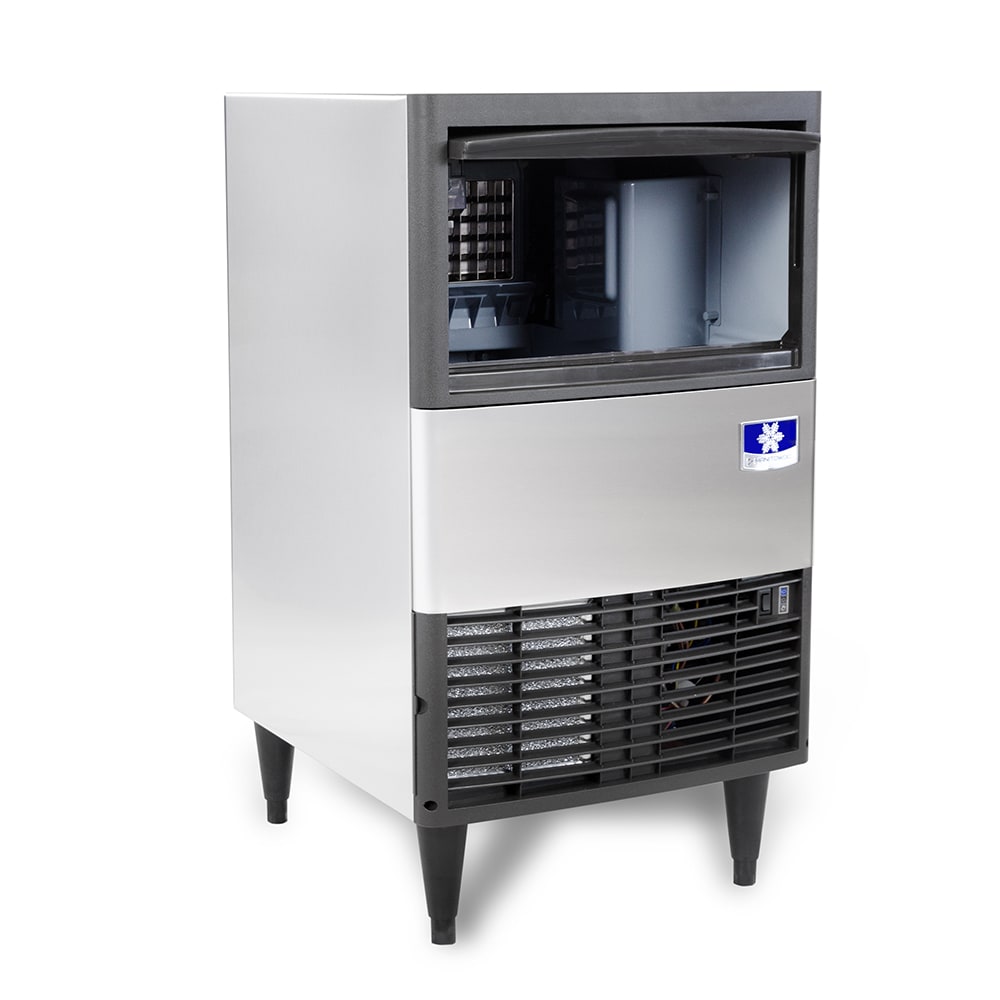

- Bin access door slides out of the way for convenient access
- AlphaSan antimicrobial agent is built into integral components to slow bacteria growth between cleanings
- Stainless steel cabinet is strong and rust resistant
- Foamed-in-place, CFC-free insulation
- Adjustable legs
- Compact footprint fits under counters and works as a standalone unit
- Flat, right-angle plug for installation in tight areas
- Air-cooled R134A refrigeration system
- Front-breathing design with an accessible, reusable air filter
- Replaces the QM-30A
- 1,600 average BTU; 2,350 peak BTU
Product Features
Ideal Operating Conditions
- Incoming water pressure: 34-90 PSI
- Incoming water temperature: 50-86 degrees F
- Surrounding temperature: 50-110 degrees F
- Clearances: 5 in. on top, sides, and back
Dimensions & Utilities
- 19.69 in. W x 22.34 in. D x 36 in. H
- 5.3 A, 19.1 kW, 1⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Manitowoc Ice UDE0065A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 57 |
| Bin Capacity (lb) | 31 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.34 |
| Drain Type | Gravity |
| Height (in) | 36 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 1 - 99 lbs |
| Series | NEO® |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 19.69 |
| Weight | 109.00 |
Lease Calculator
EconoLease Calculator
In ideal operating conditions, the Manitowoc Ice UDE0065A NEO® undercounter ice maker produces 57 pounds of full-cube ice in 24 hours, however, this amount depends on the water and air temperature. Users can operate the unit with the selector switch on its front, and to make cleanup easy, AlphaSan®, an antimicrobial agent, is integrated into key components. This slows bacteria and mold growth.
The Manitowoc Ice UDE0065A ice machine storage bin holds 31 pounds, and its liner is designed without crevices that can make cleaning more difficult. Sliding up and out of the way, the bin door provides convenient access to ice and the interior. Strong stainless steel constructs the unit’s exterior, and its compact design enables it to be used as an undercounter or standalone unit.
Product Details
- Part of the NEO ice maker series
- 57-lb. maximum daily ice production
- Makes dice ice
- Dice ice size: 7⁄8-in. x 7⁄8 in. x 7⁄8 in.
- 31-lb. storage bin saves ice for high-volume business hours
- Seamless, polyethylene bin liner eases cleaning
- Bin access door slides out of the way for convenient access
- AlphaSan antimicrobial agent is built into integral components to slow bacteria growth between cleanings
- Stainless steel cabinet is strong and rust resistant
- Foamed-in-place, CFC-free insulation
- Adjustable legs
- Compact footprint fits under counters and works as a standalone unit
- Flat, right-angle plug for installation in tight areas
- Air-cooled R134A refrigeration system
- Front-breathing design with an accessible, reusable air filter
- Replaces the QM-30A
- 1,600 average BTU; 2,350 peak BTU
Product Features
Ideal Operating Conditions
- Incoming water pressure: 34-90 PSI
- Incoming water temperature: 50-86 degrees F
- Surrounding temperature: 50-110 degrees F
- Clearances: 5 in. on top, sides, and back
Dimensions & Utilities
- 19.69 in. W x 22.34 in. D x 36 in. H
- 5.3 A, 19.1 kW, 1⁄4 HP
- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Manitowoc Ice UDE0065A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 57 |
| Bin Capacity (lb) | 31 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.34 |
| Drain Type | Gravity |
| Height (in) | 36 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 1 - 99 lbs |
| Series | NEO® |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 19.69 |
| Weight | 109.00 |
Lease Calculator
EconoLease Calculator
Manitowoc - UDE0065A-161B 19 11/16" W Full Cube NEO Undercounter Ice Maker - 57 lbs/day, Air Cooled
- Regular price
- $3,780.00
- Sale price
- $3,780.00
- Regular price
-
$4,473.00
