Koolaire KDF-0250A Description
The Koolaire KDF-0250A 161 undercounter ice machine produces ice by running water over a cold evaporator plate, which then slowly freezes individual cubes. Once the cells are full, water flow continues until it runs over the ice thickness probe for 7 seconds and signals the start of the harvest cycle. The evaporator heats up with warm refrigerant, releasing cubes from their cells and dropping them into the ice bin. Once the bin is full and the damper is held down for 7 seconds, ice production stops.
This unit can produce 256 pounds of ice with ideal ambient air and incoming water temperatures. Its average production capacity is 180 pounds, and its full cubes work well in most drinks since they melt slowly. However, full-cube ice does not cool as quickly as half-cube ice and does not take up as much space in glasses. The Koolaire KDF-0250A 161 undercounter ice maker stores 134 pounds in its bin, and its door slides up and under the machine top to aid in scooping ice.
Product Details
- 256-lb. ice production capacity
- 180-lb. AHRI-certified ice production capacity
- Condenser takes in and discharges air at the front
- Water runs over the evaporator plate into cells and is frozen by refrigerant
- Harvest cycle starts when water flow touches the ice probe for 7 sec.
- Evaporator is heated with hot refrigerant to release ice from the cells
- Ice production turns off when the bin is full and the damper is held open for 7 sec.
- On/off/wash switch for user-friendly operation
- Condenser offers quick cleanup with its reusable air filter
- Full-cube ice can be used in cocktails, water, sodas, and iced tea
- Full cubes melt more slowly than half cubes but do not cool drinks as quickly
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- 134-lb. ice storage capacity
- Ice can be scooped comfortably since the bin door slides up and under the top
- Uses R404A refrigerant
- Should not be placed near equipment that generates heat or in direct sunlight
- Required ambient air temperature: 39.2-100 degrees F
- Required incoming water temperature: 39.2-90 degrees F
- Required incoming water pressure: 20-80 PSI
Dimensions & Utilities
- 30 in. W x 28.15 in. D x 38.5 in. H
- 10.7 A, 7.5 kW
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
Koolaire KDF-0250A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| Bin Capacity (lb) | 134 |
| Compressor Type | Air Cooled |
| Drain Type | Gravity |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 200 - 299 lbs |
| Series | KDF Series |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 30 |
| Depth (in) | 28.15 |
| 24 Hr. Production (lb) | 256 |
| Weight | 210.00 |
Lease Calculator
EconoLease Calculator
Koolaire KDF-0250A Description
The Koolaire KDF-0250A 161 undercounter ice machine produces ice by running water over a cold evaporator plate, which then slowly freezes individual cubes. Once the cells are full, water flow continues until it runs over the ice thickness probe for 7 seconds and signals the start of the harvest cycle. The evaporator heats up with warm refrigerant, releasing cubes from their cells and dropping them into the ice bin. Once the bin is full and the damper is held down for 7 seconds, ice production stops.
This unit can produce 256 pounds of ice with ideal ambient air and incoming water temperatures. Its average production capacity is 180 pounds, and its full cubes work well in most drinks since they melt slowly. However, full-cube ice does not cool as quickly as half-cube ice and does not take up as much space in glasses. The Koolaire KDF-0250A 161 undercounter ice maker stores 134 pounds in its bin, and its door slides up and under the machine top to aid in scooping ice.
Product Details
- 256-lb. ice production capacity
- 180-lb. AHRI-certified ice production capacity
- Condenser takes in and discharges air at the front
- Water runs over the evaporator plate into cells and is frozen by refrigerant
- Harvest cycle starts when water flow touches the ice probe for 7 sec.
- Evaporator is heated with hot refrigerant to release ice from the cells
- Ice production turns off when the bin is full and the damper is held open for 7 sec.
- On/off/wash switch for user-friendly operation
- Condenser offers quick cleanup with its reusable air filter
- Full-cube ice can be used in cocktails, water, sodas, and iced tea
- Full cubes melt more slowly than half cubes but do not cool drinks as quickly
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- 134-lb. ice storage capacity
- Ice can be scooped comfortably since the bin door slides up and under the top
- Uses R404A refrigerant
- Should not be placed near equipment that generates heat or in direct sunlight
- Required ambient air temperature: 39.2-100 degrees F
- Required incoming water temperature: 39.2-90 degrees F
- Required incoming water pressure: 20-80 PSI
Dimensions & Utilities
- 30 in. W x 28.15 in. D x 38.5 in. H
- 10.7 A, 7.5 kW
- 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
Koolaire KDF-0250A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| Bin Capacity (lb) | 134 |
| Compressor Type | Air Cooled |
| Drain Type | Gravity |
| Height (in) | 38.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Makers |
| Product Type | Ice Makers & Bins |
| Production Range (lb/day) | 200 - 299 lbs |
| Series | KDF Series |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor |
| Width (in) | 30 |
| Depth (in) | 28.15 |
| 24 Hr. Production (lb) | 256 |
| Weight | 210.00 |
Lease Calculator
EconoLease Calculator

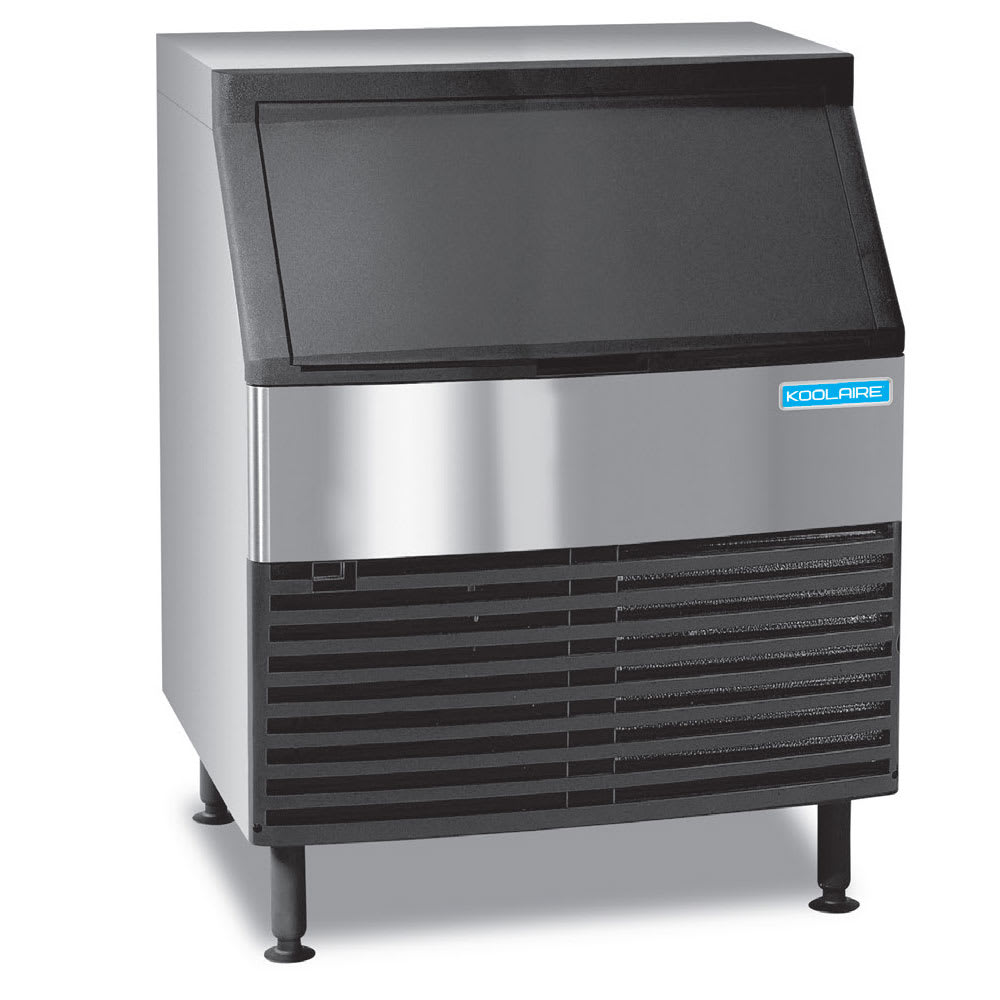

Koolaire - KDF-0250A 30"W Full Cube Undercounter Ice Maker - 256 lbs/day, Air Cooled
